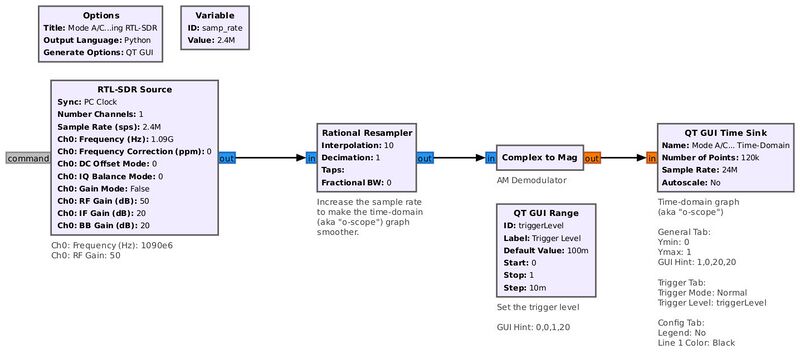

Flowgraph to create a receiver for Mode A/C/S and ADS-B aircraft navigation signals. The SDR front end is a RTL-SDR.
