Original file ‎(1,292 × 907 pixels, file size: 101 KB, MIME type: image/png)

Summary

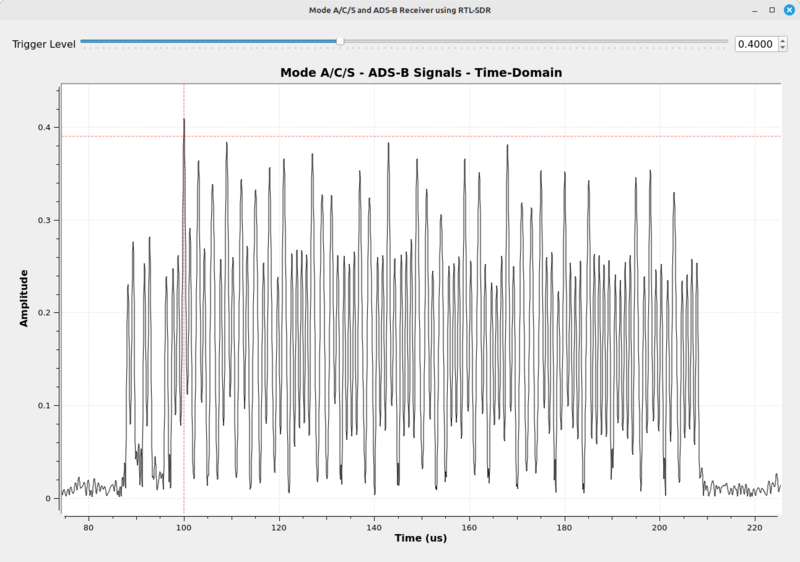

Time domain display of an aircraft Mode S or ADS-B transmission. Such transmissions are roughly 120 usec long and consist of 1 usec long bursts encoded with pulse position modulation (PPM) modulated onto the carrier using on-off keying (OOK).
