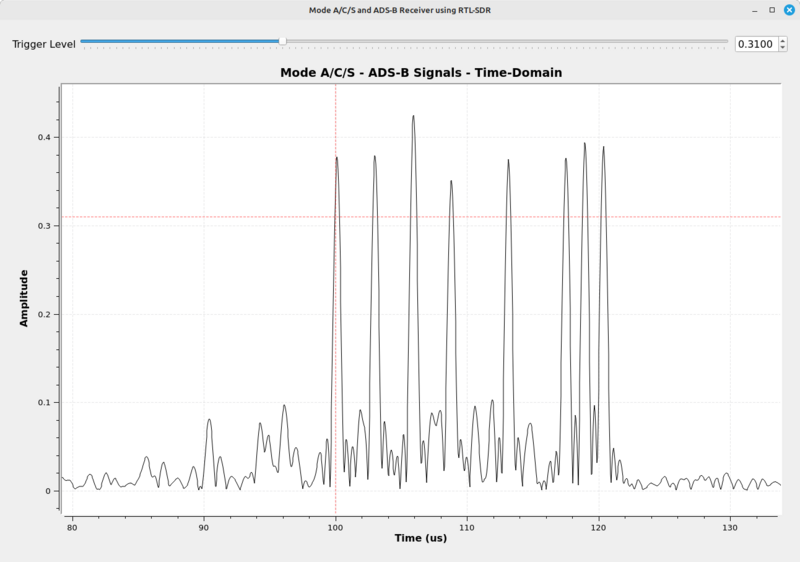

This is a Mode A or Mode C transmission. It's a roughly 21 usec transmission consisting of up to 14 bursts. This was captured with a RTL-SDR at 2.4 MHz, then upsampled to 24 MHz to smooth out the time domain display.
