Summary

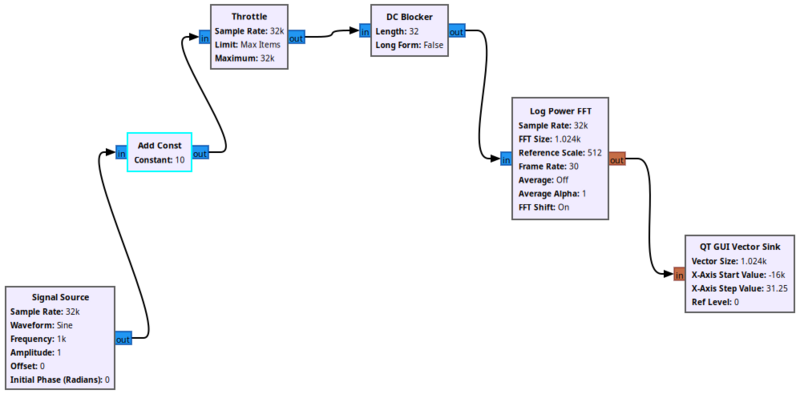

The DC Blocker is a computationally efficient block designed to remove the DC component from a signal, useful for applications like AM signal processing where a DC bias may be introduced. It creates a tight notch filter around DC, outperforming simpler IIR filters, with configurable parameters: a delay line length (default 32, adjustable to widen/narrow the notch) and a long form option (True for a flatter response with higher group delay, False for faster processing with lower delay).
