RFNoC Fast Fourier Transform (FFT) Block
Jump to navigation
Jump to search
Statement of purpose / function
Parameters
(R): Run-time adjustable
- Number of Channels
- default: 1
- Block Args
- default: ""
- Device Select
- default: -1
- Instance Select
- default: -1
- FFT Length
- default: 256
- FFT Direction
- default: 'FORWARD'
- options: ['Reverse', 'Forward']
- FFT Magnitude Mode
- default: 'COMPLEX'
- options: ['Complex', 'Magnitude', 'Mag Squared']
- FFT Shift Configuration
- default: 'NORMAL'
- options: ['Normal', 'Reverse', 'Natural']
- FFT Scaling Schedule
- default: 1706

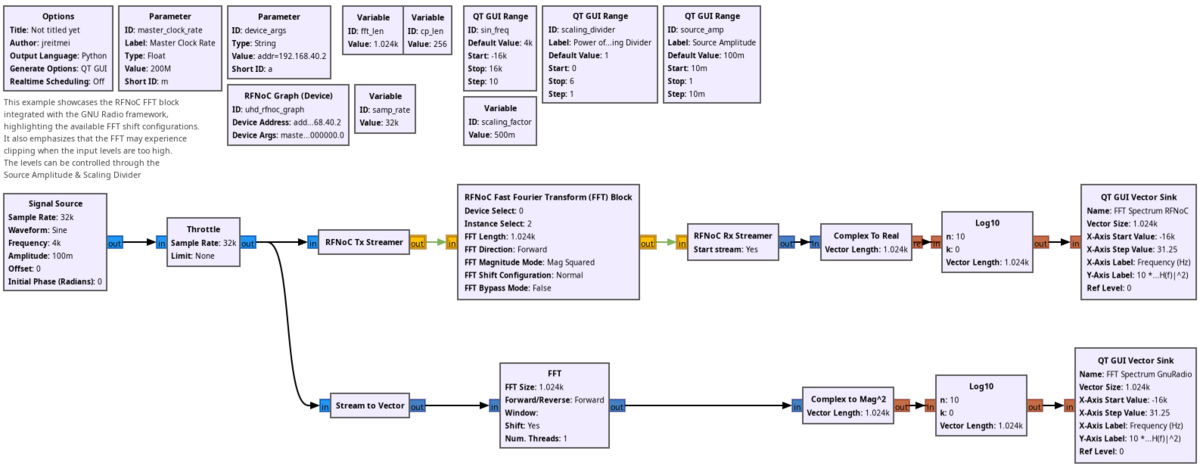

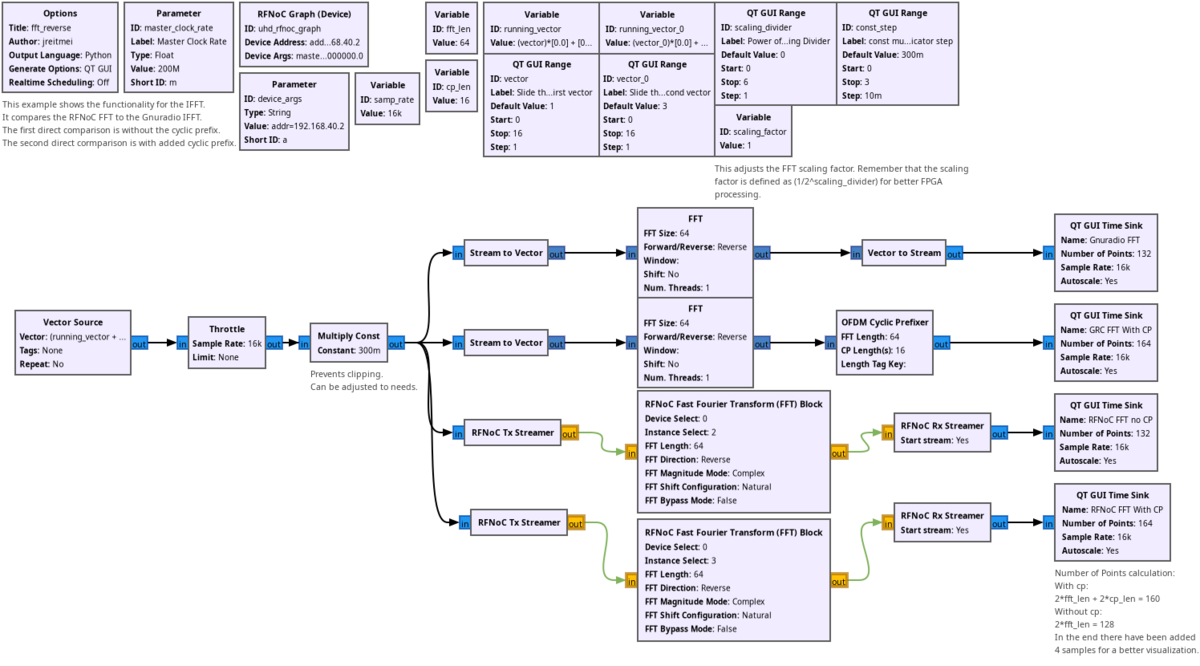

Example Flowgraph

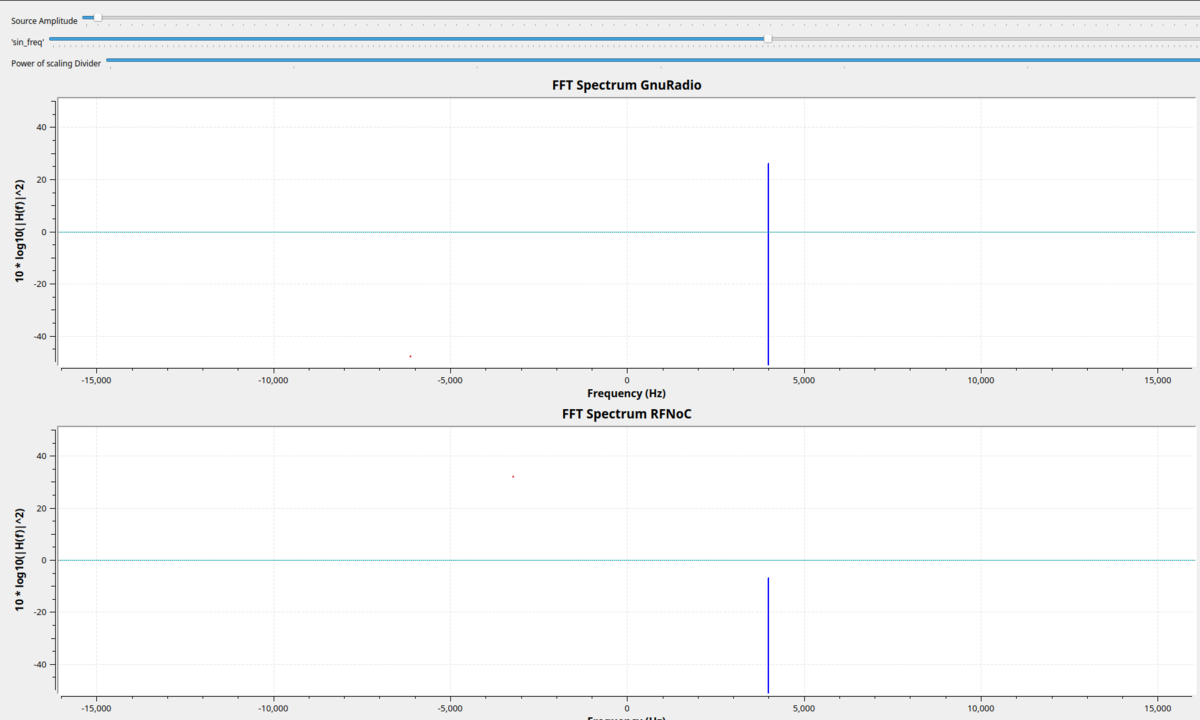

Example Output
Source Files
- C++ files
- TODO
- Header files
- TODO
- Public header files
- TODO
- Block definition
- uhd_rfnoc_fft.block.yml
