Soapy RTLSDR Source

From GNU Radio
Jump to navigation Jump to search

The RTLSDR Source Block is used to stream samples from a RTLSDR device (i.e. act as the receiver).

Parameters

(R): Run-time adjustable

Output Type
options: [Complex Float32, Complex Int16, Complex Byte]
Sample Rate (R)
default: samp_rate
Device arguments
string
Center Freq (Hz) (R)
default: freq
Frequency Correction (PPM) (R)
default: 0
AGC (R)
default: False
RF Gain (R)
default: 20

Messages

Inputs

cmd
refer to https://wiki.gnuradio.org/index.php/Soapy#Messages

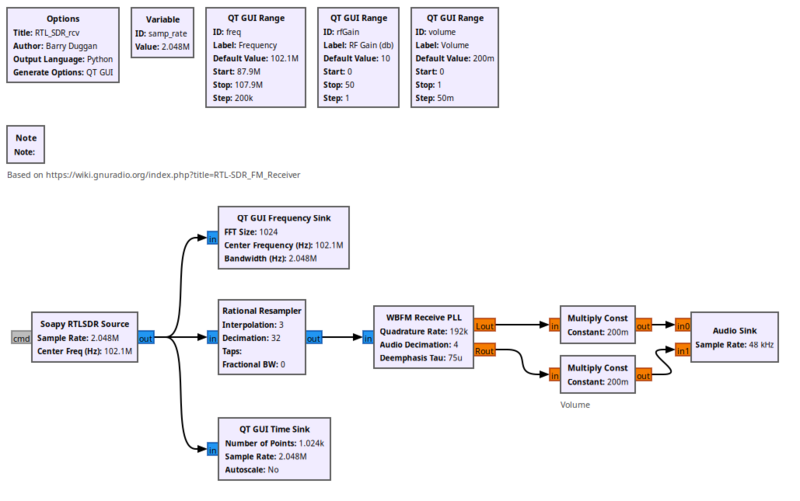

Example Flowgraph

Example Output

Source Files

C++ files
TODO
Header files
TODO
Public header files
TODO
Block definition
[1]
