Tagged Stream Mux

From GNU Radio
Jump to navigation Jump to search

Combines tagged streams.

Takes N streams as input. Each stream is tagged with packet lengths. Packets are output sequentially from each input stream. The output signal has a new length tag, which is the sum of all individual length tags. The old length tags are discarded. All other tags are propagated as expected, i.e. they stay associated with the same input item. There are cases when this behaviour is undesirable. One special case is when a tag at the first element (the head item) of one input port must stay on the head item of the output port. To achieve this, set "Tags: Preserve head position on input" to the port that will receive these special tags.

Parameters

Number of inputs
Number of input streams
Length tag names
Length tag key
Tags: Preserve head position on input
Preserves the head position of tags on this input port

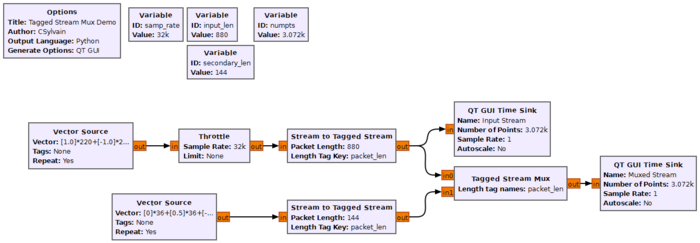

Example Flowgraph

This flowgraph can be found at [1]

Packet tx fg.png

Source Files

C++ files
tagged_stream_mux_impl.cc
Header files
tagged_stream_mux_impl.h
Public header files
tagged_stream_mux.h
Block definition
blocks_tagged_stream_mux.block.yml
